Gravity Separator
Gravity Separator
Gravity Separator
Gravity Separator
Product CategoryGrading Equipment
Product NameGravity Separator
Product ModelGS-4 / GS-5 / GS-10 / GS-40
BrandIPMA
Country of ManufactureKedah, Malaysia

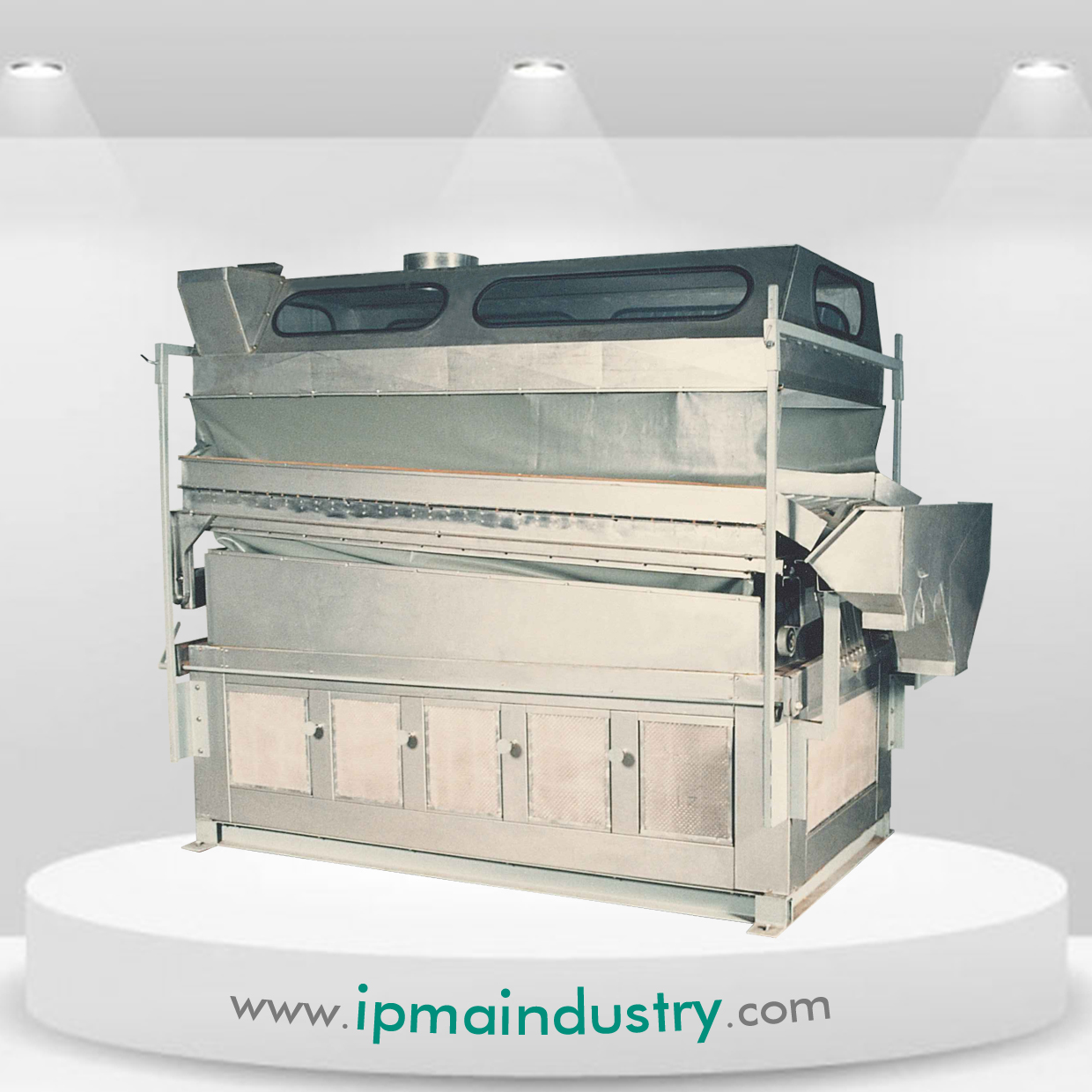

Product DescriptionGS-4
Output capacity : 3-4 t/h
Deck size : 1.07 x 2.29 m
Power requirement : 7.5 kw
Dimension (LxWxH) : 2965 x 1613 x 2243 mm

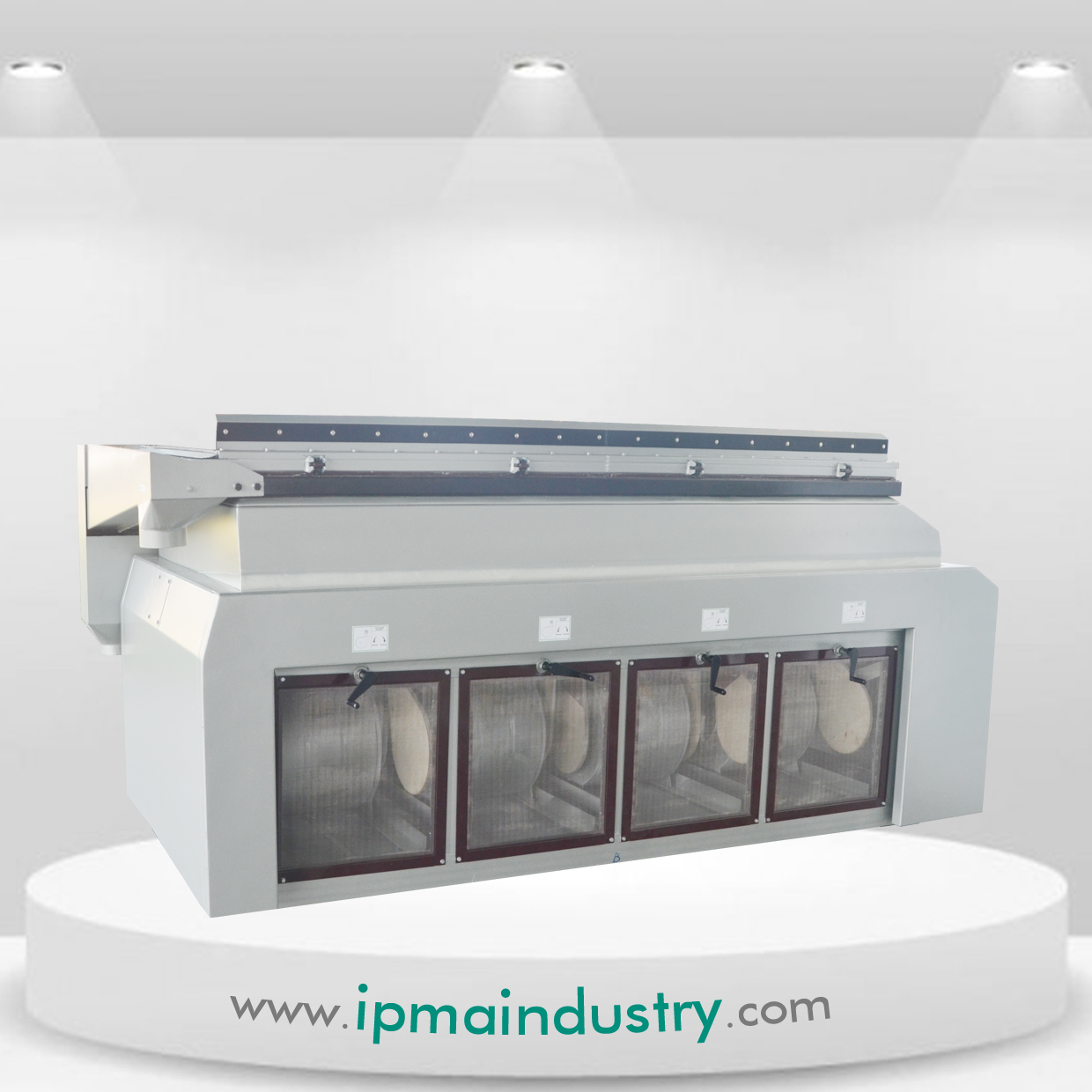

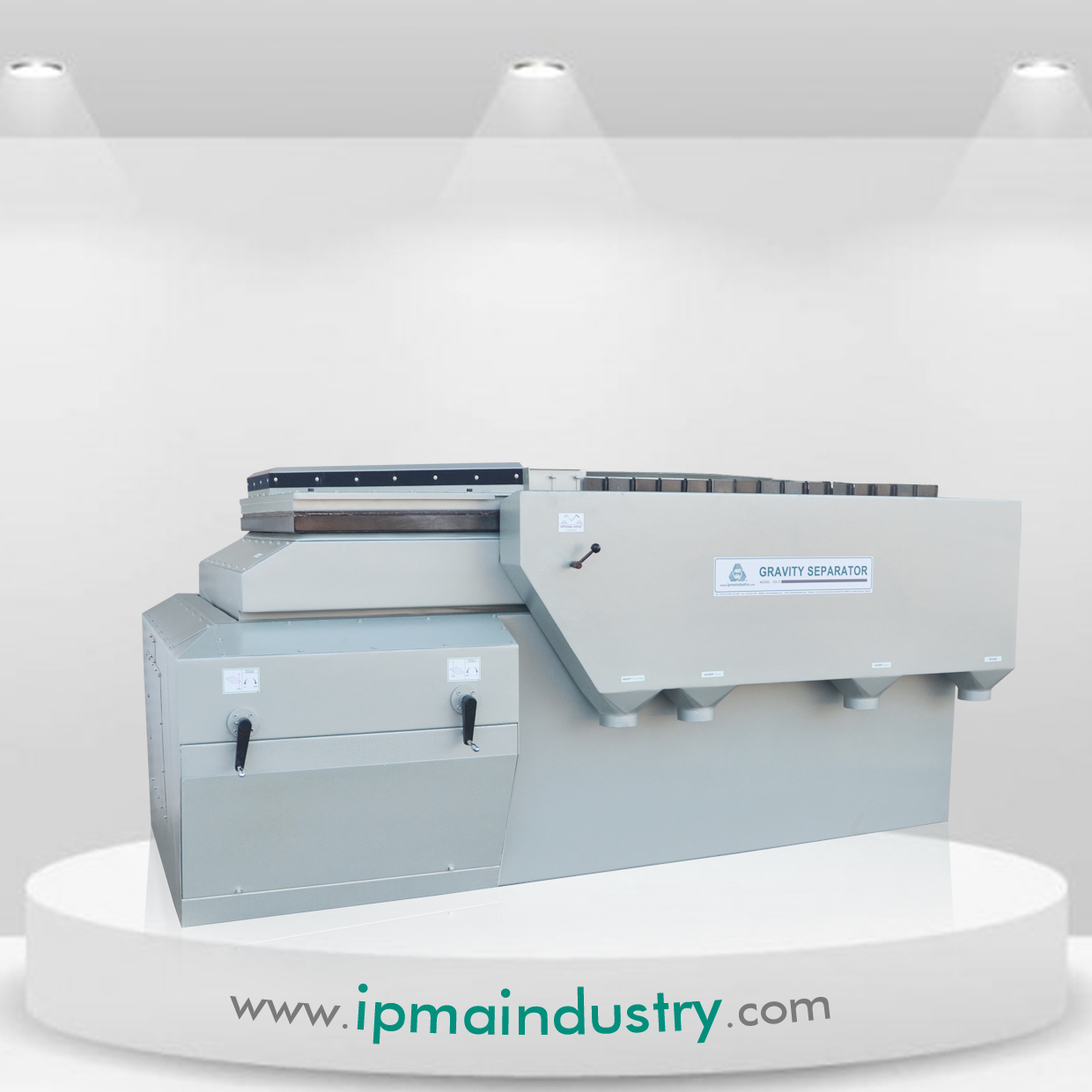

GS-5
Fan Drive : 6.0 kw
Reciprocating Drive : 2.2 kw
Dimension (LxWxH) : 2750 x 1580 x 1250 mm

GS-10
Input capacity : 10 t/h
No of fan & fan Drive : 2 x 7.5 kw (1440 rpm)
Reciprocating drive : 2.2 kw (910 rpm)
Vertical tilt adjustment : 0°-6°
Horizontal tilt adjustment : 3°-6°
Table area : 5.39 M²
Air requirement : 32400 M³/H
Dimension (LxWxH) : 4290 x 1840 x 1580 mm

GS-40
Screen area : 2.3 M²
Capacity : 3.0-4.0 t/h
Motor reciprocating : 1.10 kw
Motor fan : 7.5 kw
