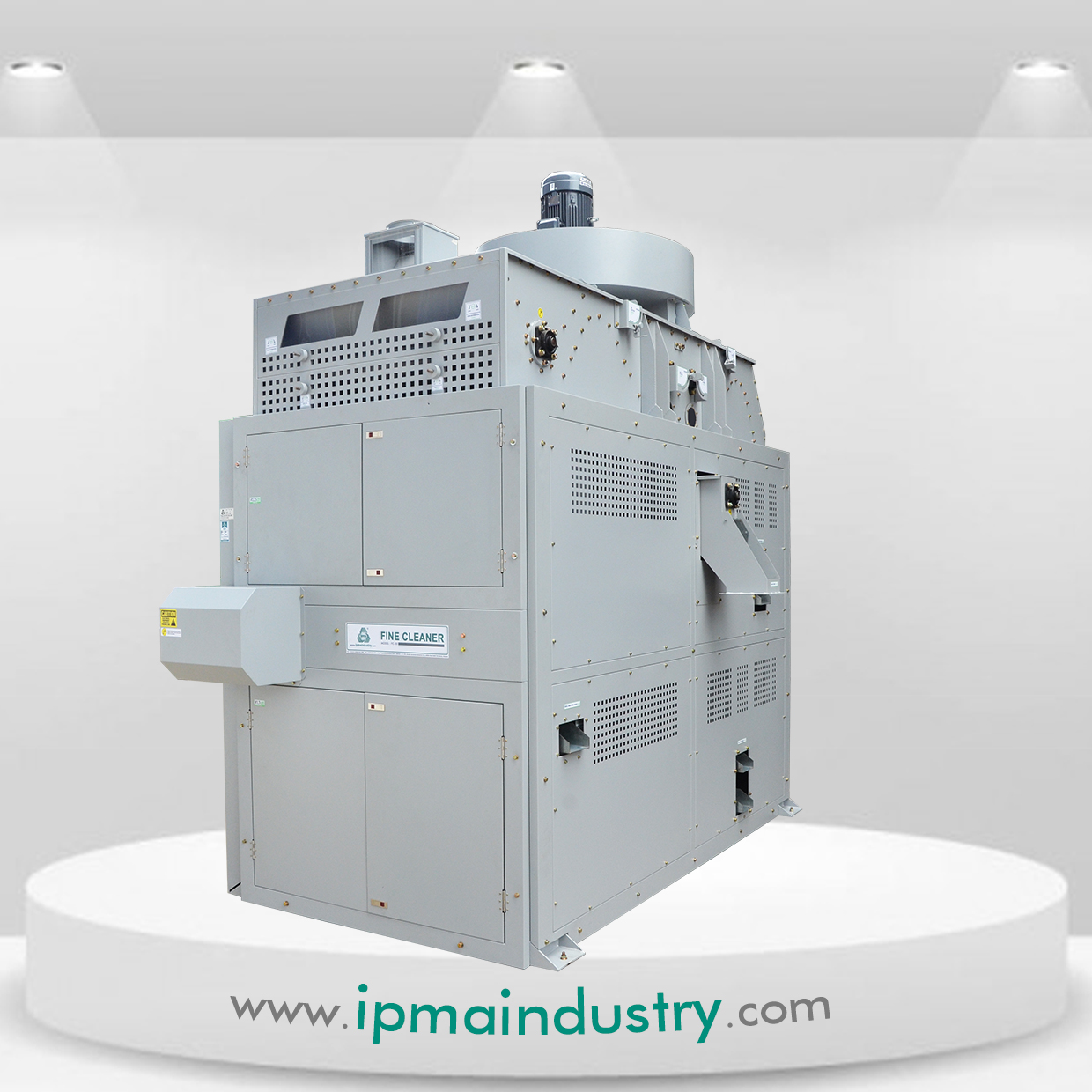

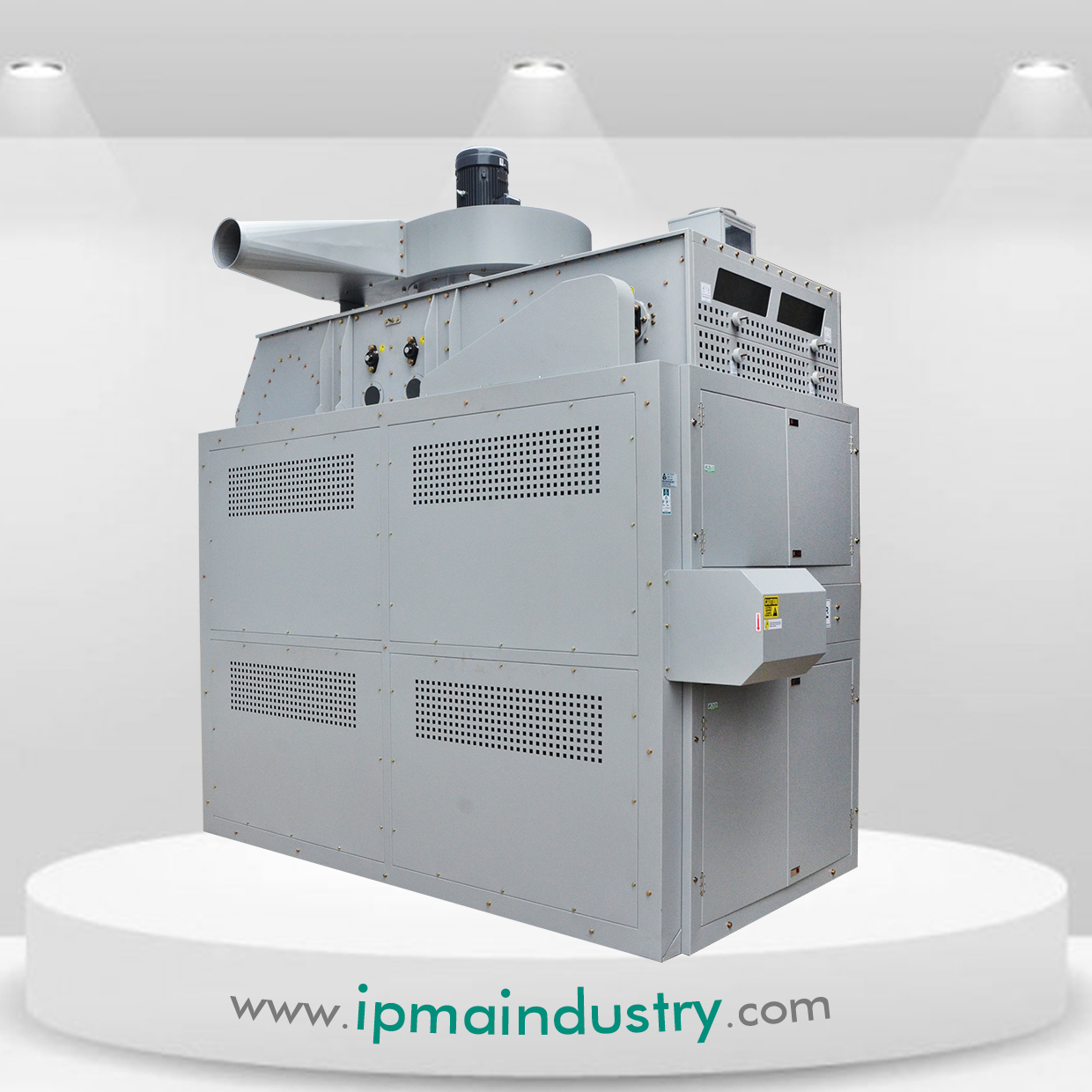

Fine Cleaner
Product CategoryCleaning Equipment
Product NameFine Cleaner
Product ModelFC-50 / FC-70
BrandIPMA
Country of ManufactureKedah, Malaysia
Product DescriptionFC-50
Power Requirement : 1.5+5.5kw
Capacity : 3-8 t/h
Screen Size 4 Layers : 1000x2000mm
Air Volume : 12500 m3/h
Dimension (LxWxH) : 2898 x 1763 x 3274 mm

FC-70
Power Requirement : 1.5+15kw
Capacity : 8-12t/h
Screen Size 4 Layers : 1500x2000mm
Air Volume : 22000 m3/h
Dimension (LxWxH) : 2400 x 2123 x 3444 mm
Weight : 2020 KG

  • Using combination of air and perforated screen for more efficient cleaning.
  • Removal of straw and rubble by large diameter rotating drum, followed by a ‘nose’ screen to recover kernels from the straw.
  • Grains are equally divided into 2sieve boats to produce high capacity cleaning.
  • Light impurities are removed by both pre and after aspiration system.
  • Sieve boats are counterbalanced to give the machine quiet and vibrating free operation and all screens are fitted with rubber balls which keep the perforations clean for optimum performance.
  • Contact Us(+60) 4 9178 799
    (+60) 4 9171 799
