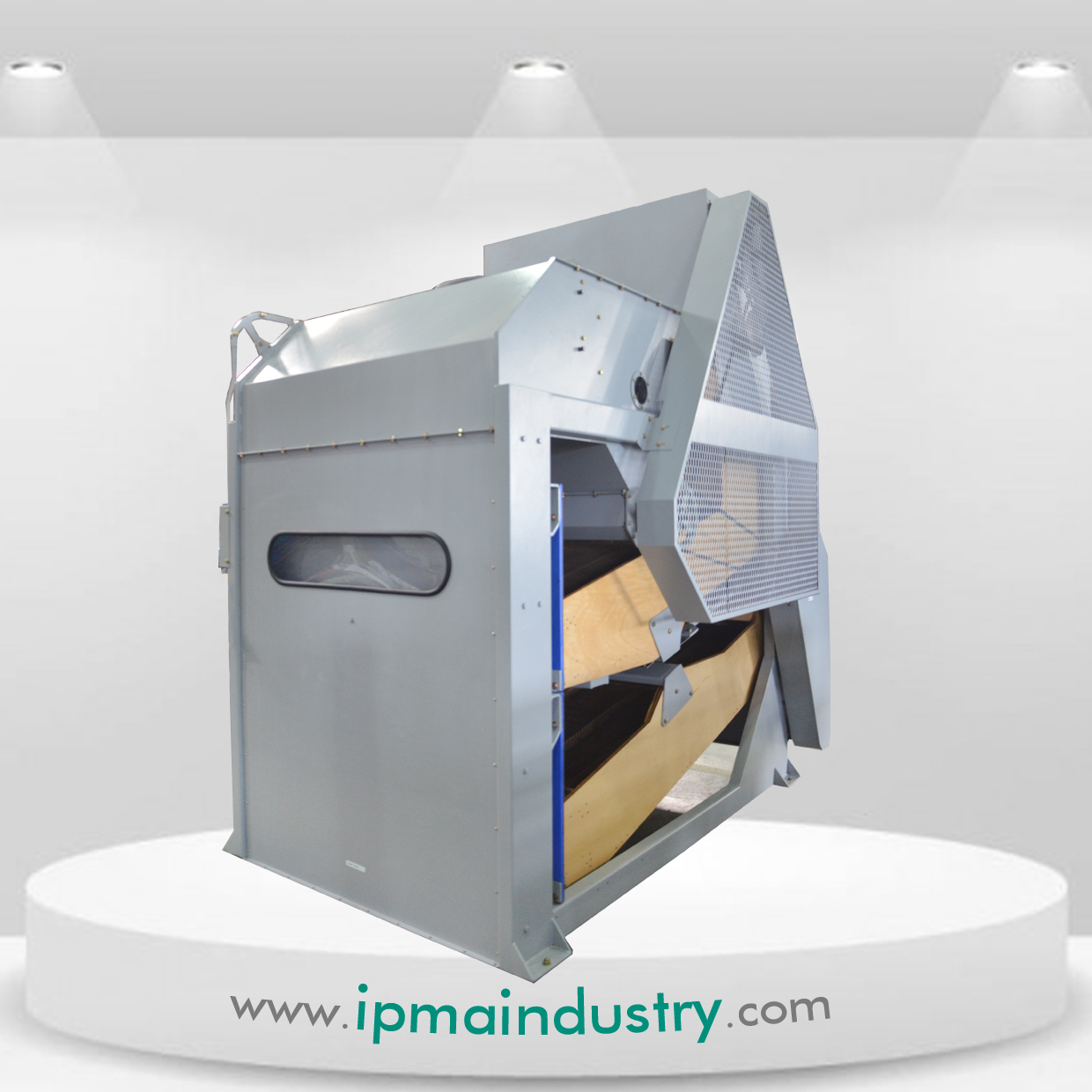

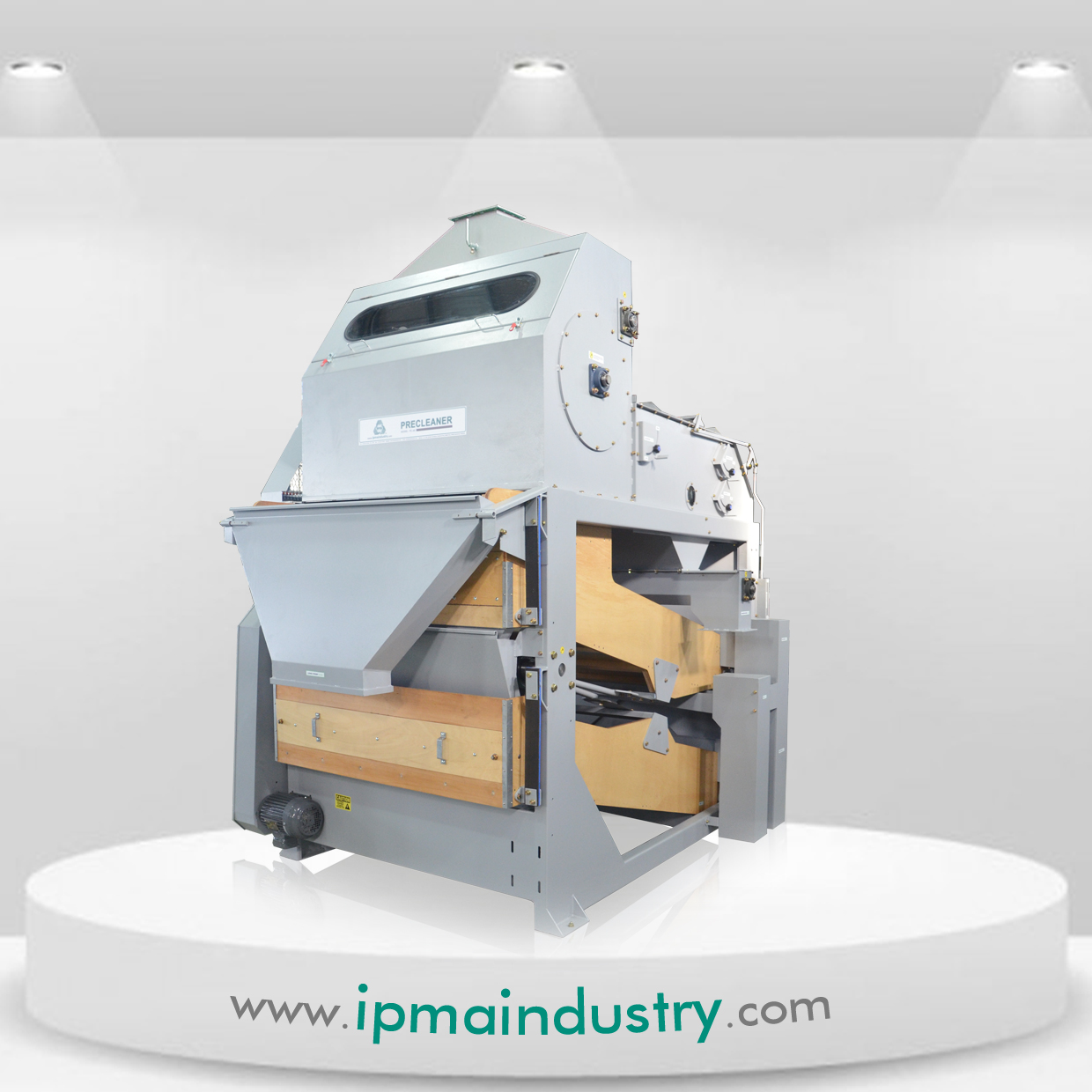

Paddy Precleaner
Paddy Precleaner
Paddy Precleaner
Product CategoryCleaning Equipment
Product NamePaddy Precleaner
Product ModelPC-50 / PC-60 / PC-70
BrandIPMA
Country of ManufactureKedah, Malaysia
Product DescriptionPC-50
Power Requirement : 1.5+5.5 kw
Capacity : 5-10 t/h
Screen Size 4 Layers : 1000 x 2000 mm
Air Volume : 12500 m3/h
Dimension (LxWxH) : 2898 x 1763 x 3274 mm
Weight : 1750 KG

PC-60
Power Requirement : 1.5+7.5 kw
Capacity : 10-15 t/h
Screen Size 4 Layers : 1250 x 2000 mm
Air Volume : 13500 m3/h
Dimension (LxWxH) : 2898 x 2013 x 3274 mm
Weight : 1900 KG

PC-70
Power Requirement : 1.5+7.5 kw
Capacity : 15-20 t/h
Screen Size 4 Layers : 1500 x 2000 mm
Air Volume : 13500 m3/h
Dimension (LxWxH) : 2898 x 2263 x 3274 mm
Weight : 2100 KG

  • Using combination of air and perforated screen for more efficient cleaning.
  • Removal of straw and rubble by large diameter rotating drum, followed by a ‘nose’ screen to recover kernels from the straw.
  • Grains are equally divided into 2sieve boats to produce high capacity cleaning.
  • Light impurities are removed by both pre and after aspiration system.
  • Sieve boats are counterbalanced to give the machine quiet and vibrating free operation and all screens are fitted with rubber balls which keep the perforations clean for optimum performance.
