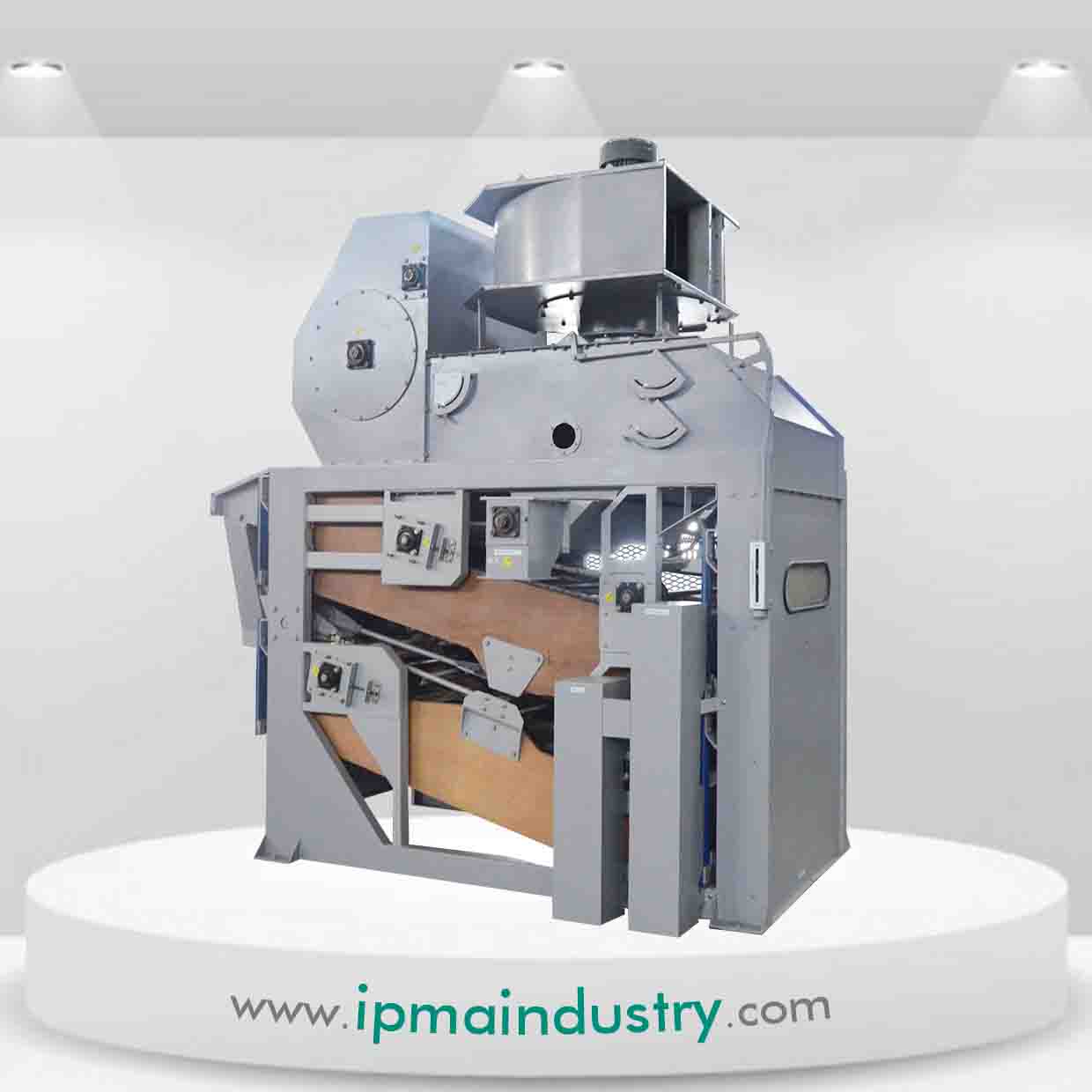

Paddy Precleaner with Pre Suction Aspirator and Straw Scraper System
Paddy Precleaner with Pre Suction Aspirator and Straw Scraper System
Product CategoryCleaning Equipment
Product NamePaddy Precleaner with Pre Suction Aspirator and Straw Scraper System
Product ModelPC-S-50 / PC-S-60 / PC-S-70
BrandIPMA
Country of ManufactureKedah, Malaysia
Product DescriptionPC-S-50
Power Requirement : 1.5+5.5kw
Capacity : 5-10 t/h
Screen Size 4 Layers : 1000 x 2000mm
Air Volume : 12500 m3/h
Dimension (LxWxH) : 2898 x 1763 x 3274mm

PC-S-60
Power Requirement : 1.5+7.5kw
Capacity : 10-15 t/h
Screen Size 4 Layers : 1250 x 2000mm
Air Volume : 13500 m3/h
Dimension (LxWxH) : 2898 x 2013 x 3274mm

PC-S-70
Power Requirement : 1.5+7.5kw
Capacity : 15-20 t/h
Screen Size 4 Layers : 1500 x 2000mm
Air Volume : 13500 m3/h
Dimension (LxWxH) : 2898 x 2263 x 3274mm

  • Using combination of air and perforated screen for more efficient cleaning.
  • Removal of straw and rubble by large diameter rotating drum, followed by a ‘nose’ screen to recover kernels from the straw.
  • Grains are equally divided into 2sieve boats to produce high capacity cleaning.
  • Light impurities are removed by both pre and after aspiration system.
  • Sieve boats are counterbalanced to give the machine quiet and vibrating free operation and all screens are fitted with rubber balls which keep the perforations clean for optimum performance.
